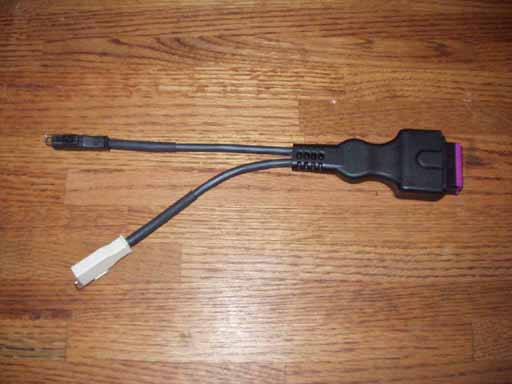

VAS5051/2 Twin Lead Adapter for VAG COM and ProDiag Interfaces
This VAS5051/2 adaptor is required for using the VAG-COM and ProDiag
interfaces to connect to the older VW and Audi vehicles with On Board
Diagnostics I (OBD-I) with the black and white 2X2 or the Black, Brown
and Blue 3X2 diagnostic adaptors.
2X2 Diagnostic connectors as found in the 1992-95 Audi 100/S4/A6/S6

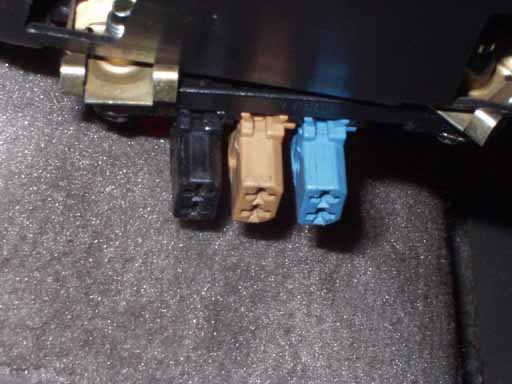

3X2 Diagnostic Connectors as found in the 1989-91 Audi 100/200, only
the Black and Brown connectors are used with the VAG-COM diagnostic
system.
Using the VAG-COM with the older 1989-91 Audi 200
