Airbag Control Unit Photos

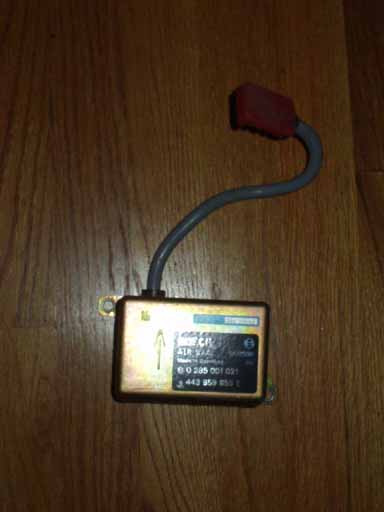

This is the original Air bag control unit used in the 1989-91 Audi 100/200 before the KF recall was done. This control unit is mounted in the center console area, behind/underneath the radio and the climate control panels.

---

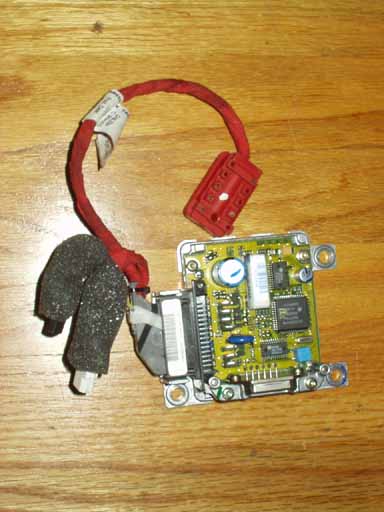

The new Airbag Control Unit that is part of the KF recall. (Note: The Metal Cover has been removed in this photo). Also note the two foam covers over the black and white diagnostic connectors on the left side of the photo.

This control unit is mounted in the center console area, behind/underneath the radio and climate control panels.
